Installing a stand-alone SQL Server 2017 instance step by step

Today's post is going to outline a whole procedure to install a basic stand-alone SQL Server 2017 instance. This procedure pretends just to be a basic guideline and not a rule for each installation because I fully understand that every environment is different and needs a customised installation to meet very specific requeriments. It is well worth noting that SQL Server 2017 must be installed on Windows Server 2016 when it comes to production environments. Having said that, let's click on the setup.exe application to start with the installation of SQL Server.
The following page will be opened. This is the section where you can find useful documentation about Hardware and Software requeriments, security, upgrade, and also a link to install SQL documentation. What's more, some very important tools are also available like Migration Assistant (SSMA) to migrate from other technologies such Oracle and MySQL. So, it is worth checking thoroughly (when you have more time).
In that page we must choose "Installation" and then click on "New SQL Server stand-alone installation or add features to an existing installation" to install just one stand-alone SQL instance (non-clustered). From this page, it is also possible to install other tools like SSMS, SSDT, and services such as Reporting Services and Machine Learning service. Furthermore, if you are installing a SQL Server clustered instance, from here you must install the rest of nodes that will be part of the cluster ("Add node to a SQL Server failover cluster").
We will have to enter the product key. In this example, I am using a product key for a Standard Edition, you need to use the product key of the edition you are want to install.
After entering a valid product key, we must accept the licence terms and move on by clicking the "Next" button.
In the next page we will find the option to update SQL Server as part of this installation process. I suggest moving on without updating it for now, especially if there is no high-quality internet connection locally. Preferably, you should apply Service Packs after finishing this process. Honestly, no database server should have internet connection due to security reasons.
So after clicking on "Next", we will now see the validation process of rules. We must meet the rules before moving on, for example, the server in question should not be a computer domain controller. Furthermore, in this case, we will mostly see that "Windows Firewall" rule will result in "warning" because of Windows Firewall is enable, don't panic, this just means that we have to configure it properly after finishing the installation so that applications can connect to the database server. To just give you another example, we may need to create a rule to allow connections via the port number for the SQL instance, in this the port will be 1433. so, things like this need to be done as part of the configuration to enable SQL instance to be used by applications. For now, just move on. Next...
It is time to select the services and other features we want to install. In this example, we will only install the database engine, so just choose "Database Engine Services" and move on. It is highly recommendable installing only the services that are really neccessary (do not install more than you need), and also SQL Server binaries should be placed on the partition disk "C".
Because this is the first SQL instance is being installed on the server, this should be a Default instance (without a name, and listening to the default port 1433), so do not change "MSSQLSERVER". Move on.

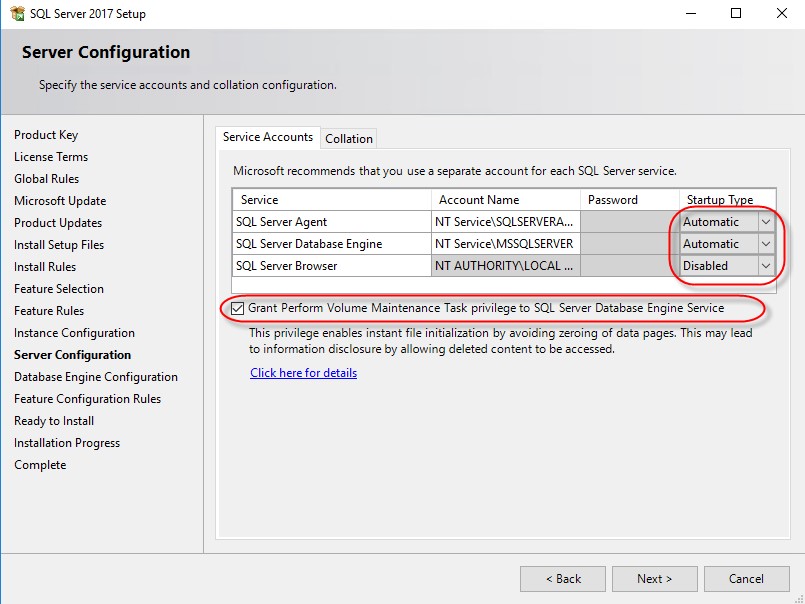

Now we have to configure many things related to Service Account and Collation settings. Firstly, in this window, you can set the Windows Account that will be used by each service such as SQL Agent, SQL Browser, and others. Make sure that the startup type is "Automatic". Additionally, it is also possible to set in advance the windows policy "Grant Perform Volume Maintenance" to SQL Server Database Engine service (This privilege allows SQL Server to enable Instant File Initialization and run data & log growth, alter/create database, and backup/restore operations much faster).

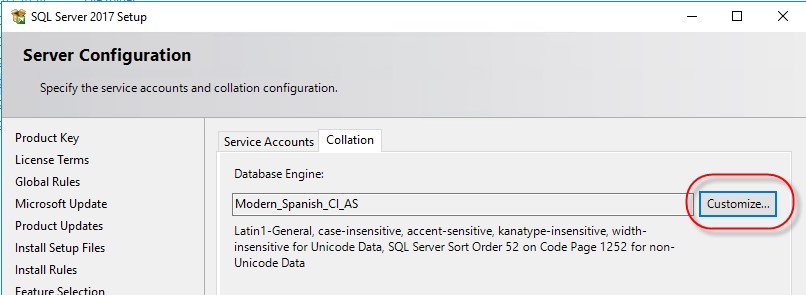

Another important setting to set is the "Collation" for the whole SQL instance. More specifically, this collation is for the "model" database and the other system databases. By default, all new user databases will  inherit the collation of the "model" database. So, bearing in mind the importance of this setting because after installing it you cannot modify it without reinstalling again. Click on "Customize" to choose the proper collation for your environment.

It is worth noting that "SQL_Latin1_General_CP1_CI_AS" is a very common SQL collation and mostly used in Spanish and English versions of applications for backward compability reasons. However, If you are installing a SQL instance for a new system then it is highly advisable using a Windows Collation like "Latin1_General_CP1_CI_AS". More info about Collations you can check some of my posts about it.

Security is of paramount importance in SQL Server configuration. So, I recommend using Windows Authentication mode as much as possible. Nevetheless, if you had to create SQL users over time, you can enable "Mixed Mode" via SSMS. In this part, we must also create an Administrator user for the SQL instance. Just click on "Add Current User" to create that Windows login as Administrator.
Now, it is a good opportunity to set the default directory for Data, Log, Backup files of user and system databases. We must just modify the directories for user databases.

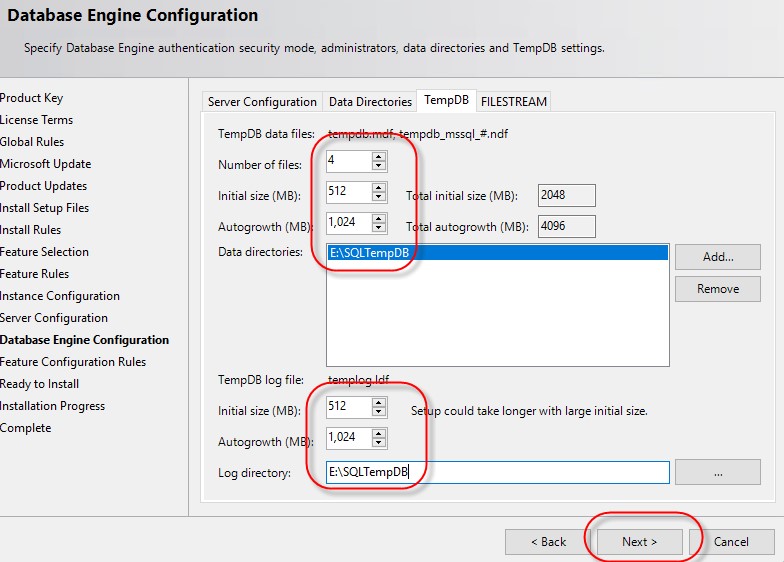

The next step is configure the TempDB database with respect to Initial Size, Autogrowth, directory for data & log files, and the number of data files. Here I show off some possible values but you can change them after the installation finishes. Check this previous post about how to configure TempDB data & files by using T-SQL. If you are more interested in having a good understanding of this database, you can check my post about Looking into some concepts about the well-known tempdb database.
Secondly, we change the directory for TempDB data & log files.
Thirdly and finally, keep in mind that TempDB data & log files should be located on a dedicated partition disk (different from the one used for user databases) and under RAID 10 or RAID 1.
Having followed all the previous steps, we have come to the last window before starting the installation. This window just shows a summary of what is going to be installed. We must ensure that everything is ok and then proceed to install.
After clicking on "Install", the process of installation will start and at this point we just have to wait.
If everything runs as expected, we will see the following end results.
That is all for the time being. Thanks for reading. Let me know any remarks you may have. Stay tuned.
